Spartan Cargo enclosed trailers are available in a variety of sizes, ranging from 4-foot-wide single-axle models to 8.5-foot-wide tandem-axle models, each equipped with an array of standard features.

Select one of the buttons for design information

Standard Features by Model
Color Choices
Package Options
Spartan Race Package
Available Feature Options
Custom Options
Warranty Information

Standard Features by Model

4’ x 6’ Single Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- ¾” Floors
- 3/8” Walls
- Single Swing Door
- V-Nose
- Grey Mod Wheels
- Semi Screwless Exterior
- 46” Interior Height
- Flat Galvalume Roof
- 16” Stoneguard
- 2” Coupler W/ Straight Tongue
- 3” Steel Tube Main Frame
- Aluminum Tread Plate Round Fenders
- 2000# Leaf Spring Drop Idler Axle
- 13” 175 Radial Tires
- EZ Lube Hubs
- 4 Way Plug
- Full LED Light Package
- Flip Down Tongue Jack
- Tag Bracket & LED Tag Light
Spec Sheet Check Weights
5’ x 8’ & 10' Single Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- ¾” Floors
- 3/8” Walls
- Ramp Door w/ Flap
- 2000# A-Frame Jack/Sand Foot
- Aluminum Tread Plate Round Fenders
- Grey Mod Wheels
- Semi Screwless Exterior
- 60” Interior Height
- Flat Galvalume Roof
- Slanted Stone Guard
- 2” Coupler
- 3” Steel Tube Main Frame
- Plastic Side Wall Vents
- 3500# Leaf Spring Drop Idler Axle
- 15” 205 Radial Tires
- EZ Lube Hubs
- 4 Way Plug
- 1-12 Volt LED Interior Light
- Full LED Light Package
- V-Nose w/Bright Anodized Aluminum Cap
- Tag Bracket & LED Tag Light
Spec Sheet Check Weights
6’ x 10’, 12’ & 14’ Single Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- ¾” Floors
- 3/8” Walls
- Ramp Door w/16" Extension Flap
- 2000# A-Frame Jack/Sand Foot
- Plastic Side Wall Vents
- Grey Mod Wheels
- Semi Screwless Exterior 78” Interior Height
- Flat Galvalume Roof
- Slanted Stone Guard
- 2” Coupler
- 3” Steel Tube Main Frame
- V-Nose w/Bright Anodized Aluminum Cap
- Tag Bracket & LED Tag Light
- 3500# Leaf Spring Drop Idler Axle
- 15” 205 Radial Tires
- EZ Lube Hubs
- 4 Way Plug
- 1-12 Volt LED Interior Light
- Full LED Light Package
- Aluminum Tread Plate Round Fenders
- 36” Side Door w/Flush Lock & Safety Chain
Spec Sheet Check Weights
6’ x 12’ & 14’ Tandem Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- ¾” Floors
- 3/8” Walls
- Ramp Door w/ 16" Extension Flap
- 2000# A-Frame Jack/Sand Foot
- Plastic Side Wall Vents
- Grey Mod Wheels
- Semi Screwless Exterior
- 78” Interior Height
- Flat Galvalume Roof
- Slanted Stone Guard
- 2 5/16” Coupler
- 4” Steel Tube Main Frame
- V-Nose w/ Bright Anodized Aluminum Cap
- Tag Bracket & LED Tag Light
- 3500# Leaf Spring Drop Axles
- 15” 205 Radial Tires
- EZ Lube Hubs
- 7 Way Plug w/ Elec. Brakes
- 1-12 Volt LED Interior Light
- Full LED Light Package w/ Back Up Light
- Rear Loading Light
- Aluminum Tread Plate Teardrop Fenders
- 36” Side Door w/ Flush Lock & Safety Chain
Spec Sheet Check Weights
7’ x 12’ & 14’ Single Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- ¾” Floors
- 3/8” Walls
- Ramp Door w/ 16" Extension Flap
- 2000# A-Frame Jack/Sand Foot
- 4" Steel Tube Main Frame
- Grey Mod Wheels
- Semi Screwless Exterior
- 78” Interior Height
- Flat Galvalume Roof
- Slanted Stone Guard
- 2 5/16” Coupler
- Aluminum Tread Plate Round Fenders
- V-Nose w/ Bright Anodized Aluminum Cap
- Tag Bracket & LED Tag Light
- 3500# Leaf Spring Drop Idler Axle
- 15” 205 Radial Tires
- EZ Lube Hubs
- 4 Way Plug
- 1-12 Volt LED Interior Light
- Full LED Light Package w/ Rear Loading Light
- Plastic Side Wall Vents
- 36” Side Door w/ Flush Lock & Safety Chain
Spec Sheet Check Weights
7’ x 12’, 14’, 16’, 18', & 20' Tandem Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- ¾” Floors
- 3/8” Walls
- Ramp Door w/ 16" Extension Flap
- Plastic Side Wall Vents
- 2000# A-Frame Jack/Sand Foot
- Grey Mod Wheels
- Semi Screwless Exterior
- 78” Interior Height
- Flat Galvalume Roof
- Slanted Stone Guard
- 2 5/16” Coupler
- 4” Steel Tube Main Frame
- 6” Tubing Main Frame on 16’ Models and up
- V-Nose w/ Bright Anodized Aluminum Cap
- 3500# Leaf Spring Drop Brake Axles
- 15” 205 Radial Tires
- EZ Lube Hubs
- 7 Way Plug w/ Elec. Brakes
- 1-12 Volt LED Interior Light & Rear Loading Light
- Full LED Light Package w/ Back Up Lights
- Aluminum Tread Plate Teardrop Fenders
- 36” Side Door w/ Flush Lock & Safety Chain
- Tag Bracket & LED Tag Light
Spec Sheet Check Weights
8’ x 14’, 16’, 18’, 20’ Tandem Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- Ramp Door w/ 16" Extension Flap
- ¾” Floors
- 3/8” Walls
- Plastic Side Wall Vents
- 2000# A-Frame Jack/Sand Foot
- Grey Mod Wheels
- Semi Screwless Exterior
- 78” Interior Height
- Flat Galvalume Roof
- ATP Lined Step Well at Side Door
- Slanted Stone Guard
- 2 5/16” Coupler
- Aluminum Tread Plate Teardrop Fender Flairs
- V-Nose w/ Bright Anodized Aluminum Cap
- 3500# Leaf Spring Drop Brake Axles w/ EZ Lube Hubs
- 15” 205 Radial Tires
- Additional Amber Marker Light Centered on Top
- 7 Way Plug w/ Elec. Brakes
- 1-12 Volt LED Interior Light & Rear Loading Light
- Full LED Light Package w/ Back Up Lights
- 6” Tubing Main Frame
- 36” Side Door w/ Flush Lock & Safety Chain
- Tag Bracket & LED Tag Light
Spec Sheet Check Weights
8.5’ x 14', 16’, 18’, 20’, 22’, & 24’ Tandem Axle
- Aluminum Exterior
- 16” OC Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- Ramp Door w/ No-Show Beaver Tail
- 16” Extension Flap on Ramp
- ¾” Floors
- 3/8” Walls
- Aluminum Tread Plate Teardrop Fender Flairs
- 6” Tubing Main Frame
- Grey Mod Wheels
- Semi Screwless Exterior
- 78” Interior Height
- Flat Galvalume Roof
- 2 5/16” Coupler
- 1-12 Volt LED Interior Light & Rear Loading Light
- Plastic Side Wall Vents
- Slanted Stone Guard
- V-Nose w/ Bright Anodized Aluminum Cap
- 3500# Leaf Spring Drop Brake Axles w/ EZ Lube Hubs
- 15” 205 Radial Tires
- Additional Amber Marker Light Centered on Top
- 7 Way Plug w/ Elec. Brakes
- ATP Lined Step Well at Side Door
- Full LED Light Package w/ Back Up Lights
- 2000# A-Frame Jack/Sand Foot
- 36” Side Door w/ Flush Lock & Safety Chain
- (4) Floor Mounted D-Rings
- Tag Bracket & LED Tag Light
Spec Sheet Check Weights
8.5’ x 26', 28' & 30’ Tandem Axle
- .030 White Aluminum Exterior
- 16” OC 4" Tube Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts
- Ramp Door w/ No-Show Beaver Tail
- 16” Extension Flap on Ramp
- ¾” Floors
- 3/8” Walls
- (4) Floor Mounted D-Rings
- Plastic Side Wall Vents
- Grey Mod Wheels
- Semi Screwless Exterior
- 78” Interior Height
- Flat Galvalume Roof
- ATP Lined Step Well at Side Door
- 1-12 Volt LED Interior Light & Rear Loading Light
- Full LED Light Package W/ Back Up Lights
- 2 5/16” Coupler
- 36” Side Door w/ Flush Lock & Safety Chain
- 6” Tubing Main Frame
- 5200# Leaf Spring Drop Axles w/ EZ Lube Hubs
- 15” 225 Radial Tire
- Additional Amber Marker Light Centered on Top
- 7 Way Plug w/ Elec. Brakes
- Slanted Stone Guard
- 2000# A-Frame Jack/Sand Foot
- Aluminum Tread Plate Teardrop Fender Flairs
- V-Nose w/ Bright Anodized Aluminum Cap
- Tag Bracket & LED Tag Light
Spec Sheet Check Weights
8.5’ x 32' & 34' Tandem Axle
- .080 Polycore Exterior
- 12” OC 4" Tube Floor Cross Members
- 16” OC Tubing Roof Bows
- 16” OC Tubing Side Wall Posts (Gussets in Side Walls)
- Heavy Duty Ramp Door w/ No-Show Beaver Tail (5 Hinges on Door)
- 16” Extension Flap on Ramp
- ¾” Floors
- 3/8” Walls
- (4) Floor Mounted D-Rings
- Plastic Side Wall Vents
- Grey Mod Wheels
- Semi Screwless Exterior
- 78” Interior Height
- Flat Galvalume Roof W 3/8" Plywood Strip
- ATP Lined Step Well at Side Door
- 1-12 Volt LED Interior Light & Rear Loading Light
- Full LED Light Package W/ Back Up Lights
- 2 5/16” Coupler
- 36” Side Door w/ Flush Lock & Safety Chain
- 8” Tubing Main Frame W/ 10-1/2" Wheel Box & DOT Tape
- 7000# Leaf Spring Drop Axles W/ 60" Triple Tongue
- 16” 235 Radial Tire
- Additional Amber Marker Light Centered on Top
- 7 Way Plug w/ Elec. Brakes W/ EZ Lube Hubs
- Slanted Stone Guard
- 5000# A-Frame Jack/Sand Foot
- Aluminum Tread Plate Teardrop Fender Flairs
- V-Nose w/ Bright Anodized Aluminum Cap
- Tag Bracket & LED Tag Light
- Heavy Duty Spring Assist
Spec Sheet Check Weights

Color Choices

Black
White
Charcoal
Silver Frost
Red
Pewter
Orange

Yellow
Em. Green
Eltc. Green
Deep Blue
Indigo Blue
Brandy Wine
True Blue
Sierra Tan

Color	0.024	0.030	Polycor	Polycor 9’
Black	Yes	Yes	Yes	Yes
White	Yes	Yes	Yes	Yes
Charcoal	Yes	Yes	Yes	Yes
Silver Frost	Yes	Yes	Yes	Yes
Red	Yes	Yes	Yes	No
Pewter	Yes	Yes	No	No
Orange	No	No	Yes	No

Color	0.024	0.030	Polycor	Polycor 9’
Yellow	No	No	Yes	No
Em. Green	No	Yes	No	No
Eltc. Green	No	No	Yes	No
Deep Blue	No	Yes	No	No
Indigo Blue	No	Yes	No	No
Brandy Wine	No	Yes	No	No
True Blue	No	No	Yes	No
Sierra Tan	No	No	Yes	No

Package Options

- 2-15A Recepts
- 1-15A Switch
- 2-4’ 110 LED Lights
- 30A Panel & Breaker w/Power Cord
- 30 AMP Motor Base
- 50 AMP 110v LED Electrical PKG
- 2-15A Recepts
- 1-15A Switch
- 2-4’ 110 LED Lights
- 50A Panel & Breaker w/Power Cord
- 50 AMP Motor Base
- Rubber Coin Interior PKG
- Aluminum Wall
- White Vinyl Ceiling Liner
- Rubber Coin Floor
30 AMP 12v LED Electrical PKG
- 22-15A Recepts
- 1-12V Switch
- 2-12V 48” Strip Lights
- 30A WFCO & Breaker w/Power Cord
- 30 AMP Motor Base
50 AMP 12v LED Electrical PKG
- 2-15A Recepts
- 1-12V Switch
- 2-12V 48” Strip Lights
- 50A WFCO & Breaker w/Power Cord
- 50 AMP Motor Base
RTP Interior PKG
- Aluminum Wall
- White Vinyl Ceiling Liner
- RTP Floor
ATP Interior PKG
- Aluminum Wall
- White Vinyl Ceiling Liner
- ATP Floor
Spartan Big Package 8.5 x 26 thru 30
- 7000# Torsion or Leaf Brake Axles
- 235 Radial Tires
- 12” OC Floor Crossmembers
- 8” Tube Mainframe
- Heavy Duty Ramp & Flap
- 3/8’ Plywood Roof Buffer
- Heavy Duty 15000# Coupler
- Polycor Siding
Spartan Big Package 7x14TA thru 8.5X24TA
- 7000# Torsion or Leaf Brake Axles
- 5000 A-Frame Jack
- 235 Radial Tires
- 12" OC Floor Crossmembers
- Heavy Duty Ramp & Flap
- Polycor Siding
- 3/8 Plywood Strip ILO Luan Strip
- 15000# Coupler
- 60" Triple Tube Tongue

Spartan Race Package
- 6” Additional Height
- Extra Wide Ramp Door
- Spread Axle Upgrade
- 1-15 Amp Exterior GFI Recept
- 2-24” 12V Fluorescent Lights
- 5-15 Amp 110V Recepts
- 6-12V 3-Way Switches
- 2-12V 2-Way Switches
- 1-12V LED Loading Lights (Pair)
- 4 Total Double LED Tail Lights Slant Mount in Ramp Door
- 8-48” LED Striplights
- 1-50 Amp WFCO Panel Box-Breaker-Power Cord
- 1-48” 12V LED Strip Light w/Switch Under Cabinet
- 1-Wire and Brace for AC
- Jenson Radio with 6 Jenson Speakers 2 Exterior
- Upgrade to Double 24” side Door with Top and Bottom Latch and Hold Back Latches
- 12V Battery & Box
- Semi-Screwless Exterior 6” Add Height
- Cast/Anodize Corners Front & Rear
- 2 Total Non-Powered Roof Vent
- Omits Plastic Side Vents
- 3” Bottom Trim ILO 1-1/4” Rub Rail
- 95-1/2” Overhead Cabinet with lights
- 95-1/2” L-Base Cabinet with lights
- Generator Door 36” x 36” with Vent
- 36” Carpet Walls
- ATP Fender Boxes
- 24” Closets with Shelf & Rod with lights
- Built-in Tool Boxes
- Metal on Walls
- Metal Ceiling Liner
- Ceiling Cove Trim

Available Feature Options

.024 White Aluminum Exterior
16” OC Floor Cross Members
16” OC Tubing Roof Bows
16” OC Tubing Side Wall Posts
3/4” Plywood Floors & 3/8” Plywood Walls

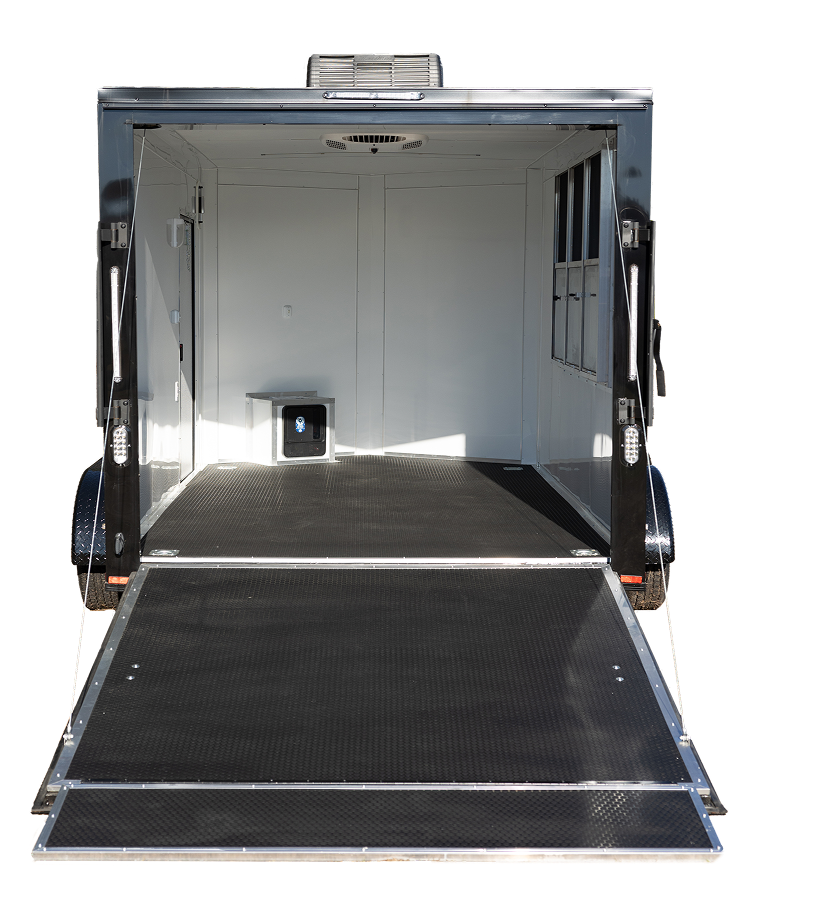

Ramp Door w/No Show Beaver Tail
2000# A-Frame Jack/Sand Foot
Plastic Side Wall Vents
Grey Mod Wheels
Semi-Screwless Exterior
78” Interior Height
Gavalume Roof
Slanted Stone Guard
2-5/16” Coupler
4” Steel Tube Main Frame
V-Nose w/Bright Anodized Aluminum Cap
Tag Bracket & LED Tag Light
3500# Leaf Spring Drop Idler Axle
15” 205 Radial Tires
EZ Lube Hubs
4 Way Plug
1-12 Volt LED Interior Light
Full LED Light Package w/Rear Loading Light
Aluminum Tread Plate Fenders

We also offer a wide range of package options and customization choices, allowing you to create a trailer tailored to your specific needs.

Custom Options

Some Available Options
- 12” OC Roof Bows
- 12” OC Wall Posts
- 12” OC Cross Members Floor
- 5200 Torsion Brake Axles
- 5200 Drop Brake Leaf Spring Axles
- 7000 Torsion Brake Axles
- 7000 Drop Brake Leaf Spring Axles
- Wall Mount D-Rings
- Floor Mount D-Rings
- E-Track on wall
- E-Track on Floor with Steel Backer
- Additional Heights Available
- Reduced Heights Available
- Double Rear Doors with holdbacks 6w-8.5w
- 60” Triple Tube Tongue
- 54” Tiple tube tongue
- MAXX Air Cover
- Barlock on Side Door
- 2 way Aluminum Side Vents
- Double 24” Side Door
- 24” ATP on Side and Rear
- 6” Hold back latch on Side Door
- Slanted V-Nose
- Windows (15x30, 30x30, & 30x15)
- Roof Vents
- Black Trim Package
- Concession Door
- Mag Wheels
- Spare Tire Mount
- Scissor Jacks (pair)
- Insulated Walls/Ceilings
- White Vinyl Ceiling Liner
- Thermoply Ceiling Liner
- 3/4” Plywood Walls
- White Vinyl Wall Liner
- Raw Luan Ceiling Liner
- Screwless Exterior
- .030 Metal Exterior
- .080 Polycore Exterior
- Two Tone
- 16” Aluminum Ladder
- Hidden Square Tire Compartment
- Rubber Tread Plate Floor
- Rubber Coin Flooring
- Custom Cabinets
- Generator Door
- Generator Compartment
- Generator Slides
- 13,500 BTU AC with Heat Strip
- 15,000 BTU AC with Heat Strip
- Stable Deck Flooring In Lieu of Plywood

Every Spartan Cargo enclosed trailer comes with a 3-year limited warranty from the date of purchase. At Spartan Cargo, we take pride in our craftsmanship and are dedicated to ensuring your complete satisfaction.

Three (3) Year Limited Warranty

Limited Warranty:
Spartan Cargo warrants to the original consumer / purchaser for a period of three (3) years from the date of purchase by purchaser that the trailer shall be free of defects in materials and workmanship attributable to warrantor. Excluded from this three (3) year warranty are electrical, plumbing, windows, doors, sealant, paint, undercoating, jacks, roof vents, and fiberglass parts, which are warranted for a one (1) year period from the date of purchase by the original purchaser. Axles, tires, A/C units, and awnings are covered by a separate warranty by the respective manufacturers.
Excluded from Warranty:
Warrantor is not responsible for claims related to: (1)defacing, scratches, dents, chips, or tears on any surface, not caused by warrantor, (2) routine maintenance, (3) damage from unauthorized repairs, abuse, misuse, or neglect, (4) damage caused by improper hitch ball or tow hookup, (5) component parts covered by separate supplier warranty, (6) any alterations to the original structure or component parts, (7) damages incurred though use by a third party (lessor or renter). Spartan Cargo reserves the right of final determination on whether a product has been abused by the purchaser.
Warrantor’s Obligation:
Warrantor shall elect to remedy defects in materials and workmanship caused by warrantor repair, replacement or refund, if replacement or refund is possible. All defective products shall be delivered to warrantor's address below unless prior approval is obtained from warrantor. Warrantor may select another qualified location for the repair to be completed. Warrantor will not be obligated in any way to pay for repairs made without a specific a repair authorization number. All costs incurred in shipping or delivery of products for warranty service shall be borne by the purchaser. Warrantor shall remedy defects within a reasonable time, not to exceed sixty (60) days after delivery by purchaser.
Purchaser’s Obligation:
Purchaser must return the warranty registration form within fifteen (15) days of purchase to activate the warranty. Purchaser must pay all services, towing, and transportation charges incurred to obtain warranty service.
Disclaimer of Consequential and Incidental Damages:
The original purchaser of warrantor’s product and any person to whom the product is transferred and to any person who is an intended user or beneficiary of the product shall not be entitled to recover from warrantor any consequential or incidental damages resulting from any product defects, including: loss of trailer, revenue, or other commercial loss, cost of rental equipment, or loss of time and convenience.
Limitation and Disclaimer of Implied Warranty:
Warrantor expressly limits the duration of all implied warranties of merchantability, fitness for a particular purpose, and other implied warranties after expiration of warranty date. No person has the authority to enlarge, amend, or modify this warranty. This warranty is valid only in the continental United States and Canada. It is not valid on merchandise shipped overseas.
Design Change:
Warrantor reserves the right to change the design of its product from time to time without notice or obligation to make corresponding changes to previously manufactured products.

This warranty gives you specific rights. No action to enforce this warranty shall be commenced later than six (6) months discovery of any defect, or after the expiration date of warranty period.
